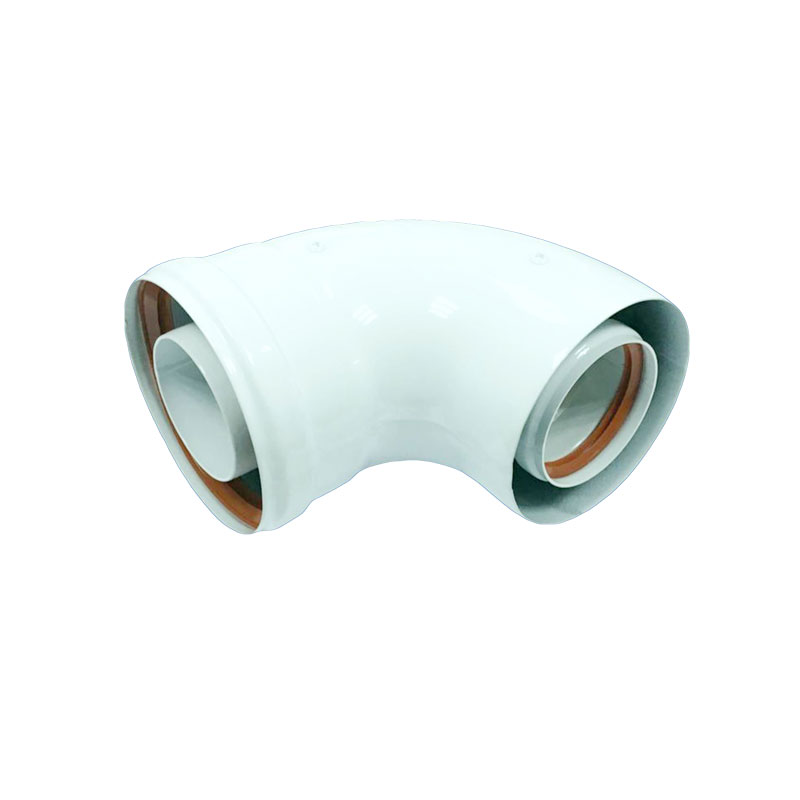

Φ80mm Flue W8-90 Factory

Φ80mm Flue W8-90

Φ80mm Flue W8-90

Ningbo Taiyue Hardware Co.,Ltd.

Location: China
Business Type: Manufacturer, Exporter
Brands: TAIYUE
Certificate: CE,ISO9001
Model: W8-90
Terms of payment and delivery: Payment before delivery
Minimum order quantity: 100pcs
Price: Consultation
Packing details: Provides custom-made service
Delivery time: within 20 days after receiving the advanced payment
Payment method: 30% as deposit, 70% before delivery

Product Details

1. Specializing in the production of gas wall-mounted boiler smoke pipes, elbows, extensions, etc., and can provide original sets of standard overall smoke pipes of various brands

2. Regular stocking size:
Diameter: 60 / 100mm, 80 / 125mm,
Length: 20cm, 30cm, 50cm, 80cm, 100cm,
Angle: 90 degrees, 45 degrees, etc.
Can customize products according to customer requirements

3. Color: Milky white

4. Connection method: Hoop or Plug-in connection

5. Material:
Conventional smoke pipe: inner pipe material --- welded aluminum, outer pipe material --- galvanized iron sprayed or welded aluminum sprayed
Condensing smoke pipe: inner pipe material --- PP plastic, outer pipe material --- galvanized iron sprayed or welded aluminum sprayed

6. Installation recommendations:

1.It is recommended that the tobacco pipe be tilted down 5 degrees when installed

   (1) It can prevent rainwater from flowing back into the machine along the smoke pipe when it rains

   (2) The exhaust fumes may be slightly downward in case of cold condensation, which is conducive to the elimination of condensation.

2.It is recommended that the total length of the tobacco pipe and the extension section not exceed 3 meters.

   (1) If the exhaust pipe is too long, the backflow will affect the boiler
